Reconstruction of the 2017 Woolstone Hill formation | ||

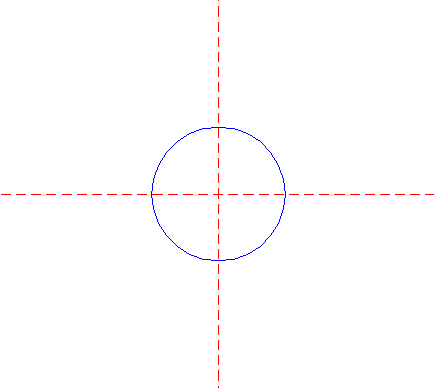

1. | ![]() | Draw a circle. Draw and extend the horizontal and vertical centerlines. |
2. | ![]() | Copy circle 1 to its righthand intersection with the horizontal centerline. Move this circle (copy and delete original) to its own corresponding intersection. |

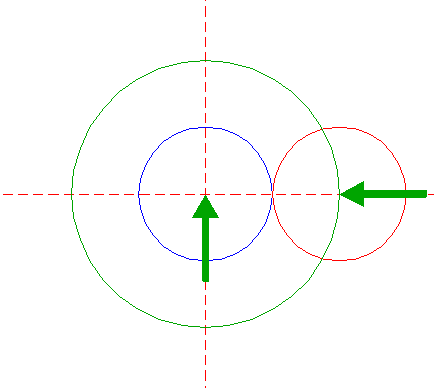

3. | ![]() | Construct a circle concentric to circle 1, passing through the center of circle 2. |

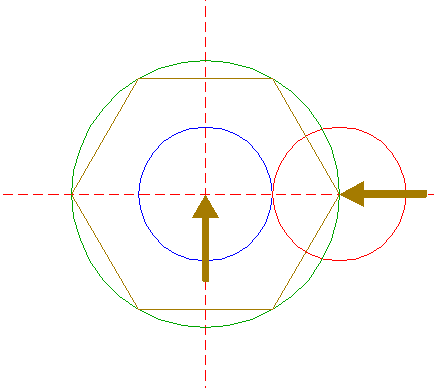

4. | ![]() | Construct the inscribed hexagon (regular six-sided polygon) of circle 3, pointing to the right. |

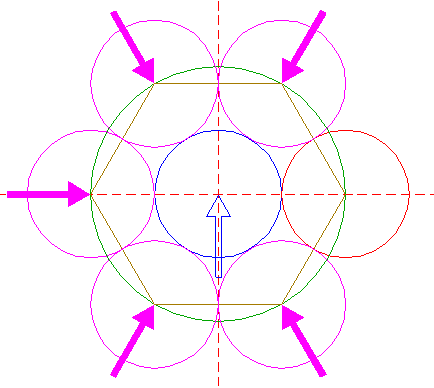

5. | ![]() | Copy circle 1 five times, to the other angular points of hexagon 4. |

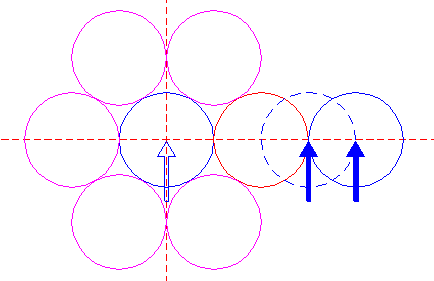

6. | ![]() | Copy circle 1 to the righthand intersection of circle 2 and the horizontal centerline. Move this circle to its own corresponding intersection. |
7. | ![]() | Construct a circle concentric to circle 1, passing through the center of circle 6. |

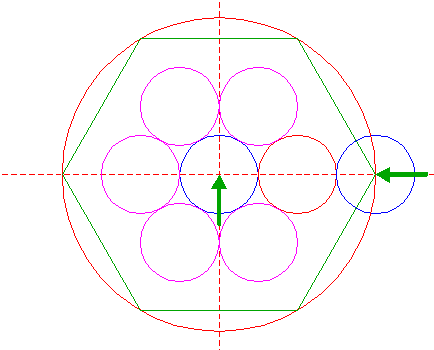

8. | ![]() | Construct the inscribed hexagon of circle 7, pointing to the right. |

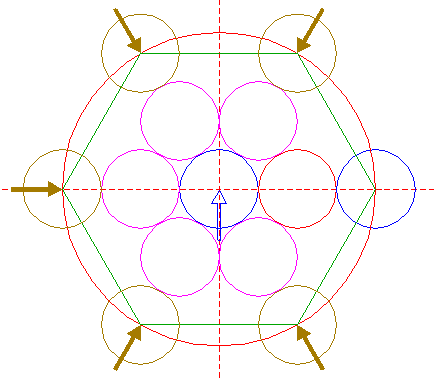

9. | ![]() | Copy circle 1 five times, to the other angular points of hexagon 8. |

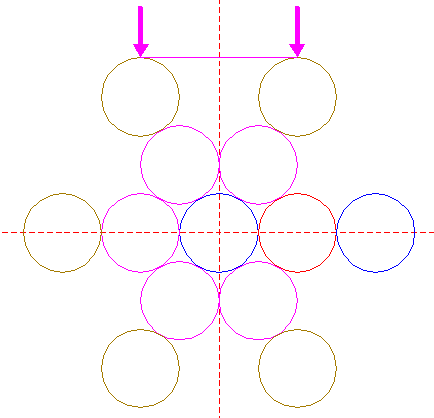

10. | ![]() | Construct a line tangent to the upper two circles 9, at the upper sides. |

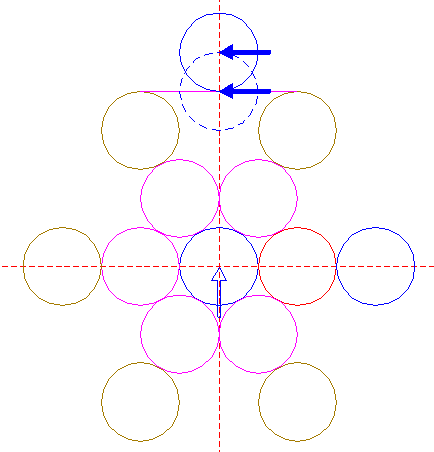

11. | ![]() | Copy circle 1 to the intersection of line 10 and the vertical centerline. Move this circle to its own upper intersection with the vertical centerline. |

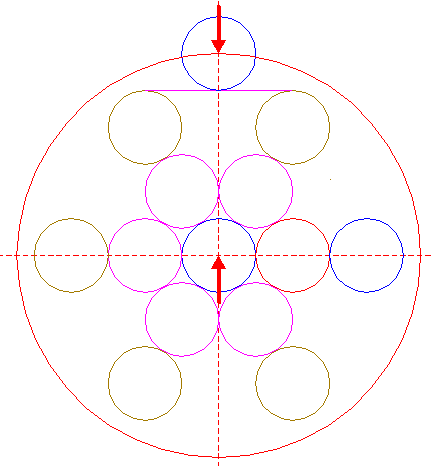

12. | ![]() | Construct a circle concentric to circle 1, passing through the center of circle 11. |

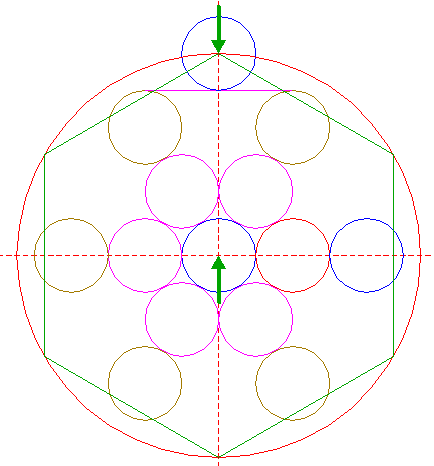

13. | ![]() | Construct the inscribed hexagon of circle 12, pointing up. |

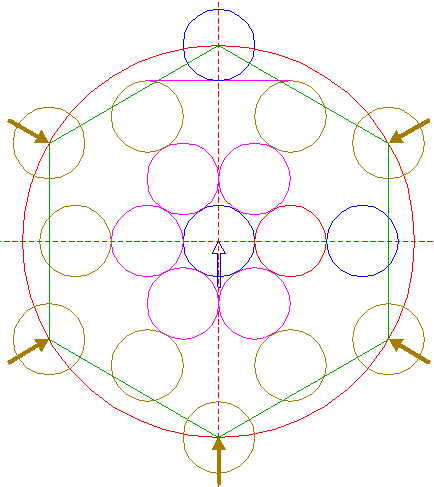

14. | ![]() | Copy circle 1 five times, to the other angular points of hexagon 13. |

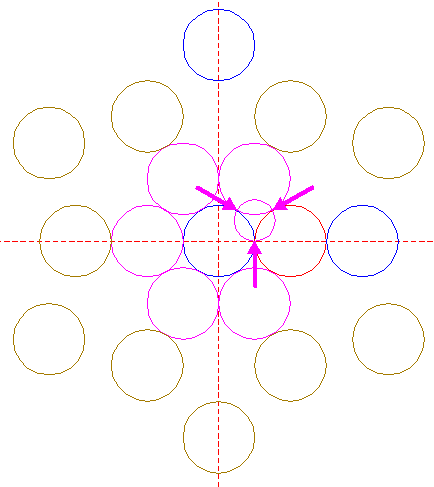

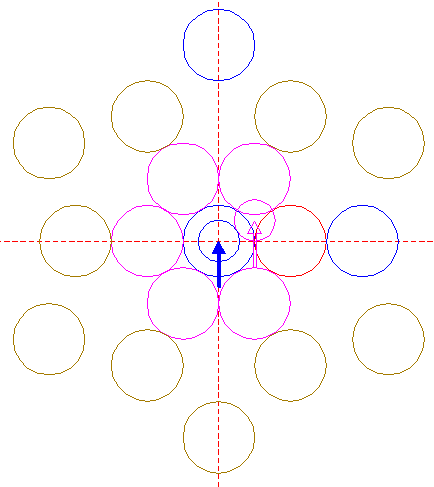

15. | ![]() | Construct a circle, passing through the intersections (tangent points) of circles 1, and 2, and upper righthand circle 5. |

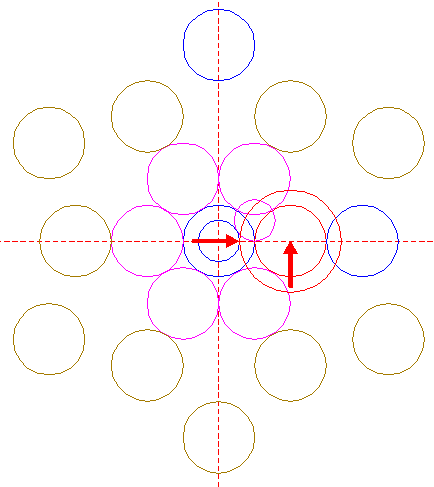

16. | ![]() | Copy circle 15 to the center of circle 1. |
17. | ![]() | Construct a circle concentric to circle 2, tangent to circle 16 at the righthand side. |
18. | ![]() | Copy circle 17 eleven times, to the centers of circles 5, 11, and 14. |

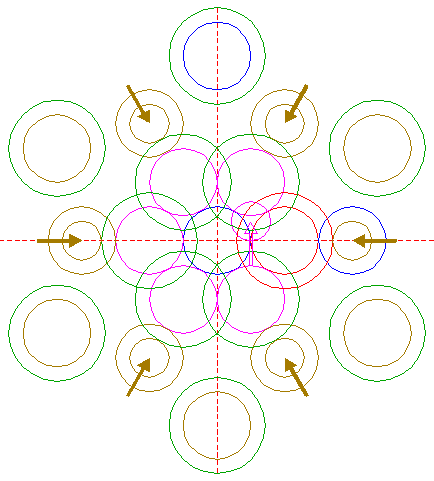

19. | ![]() | Copy circle 15 six times, to the centers of circles 6 and 9. |

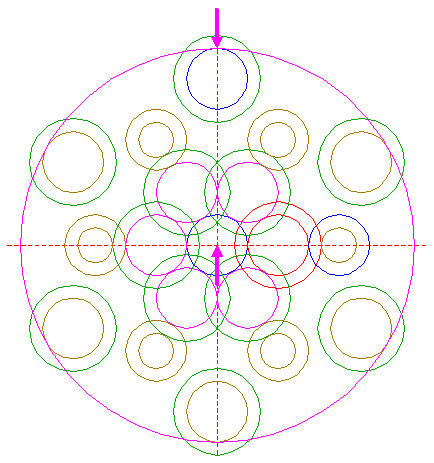

20. | ![]() | Construct a circle concentric to circle 1, tangent to circle 11 at the upper side. |

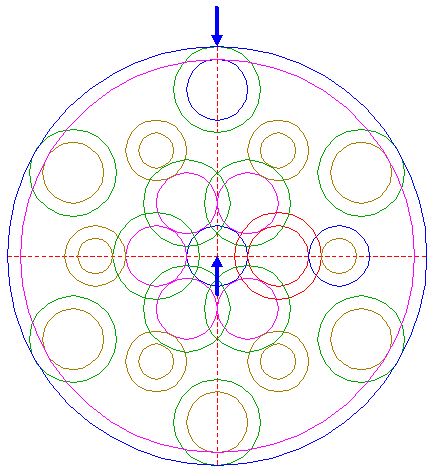

21. | ![]() | Construct a circle concentric to circle 1, tangent to uppermost circle 18 at the upper side. |

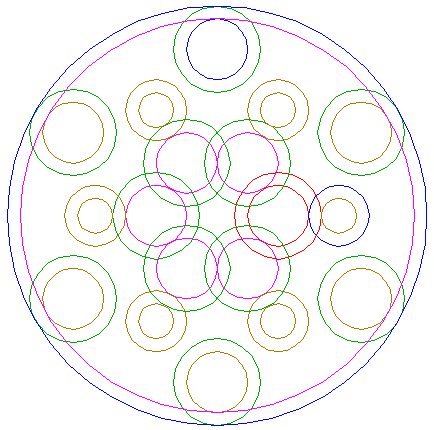

22. | ![]() | Circles 2, 5, 6, 9, 11, 14, 17, 18, 19, 20, and 21, are used for the final reconstruction. |

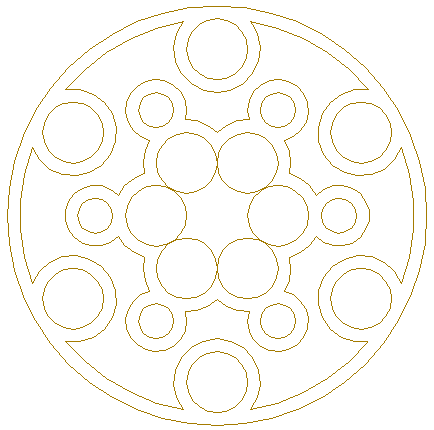

23. | ![]() | Remove all parts not visible within the formation itself. |

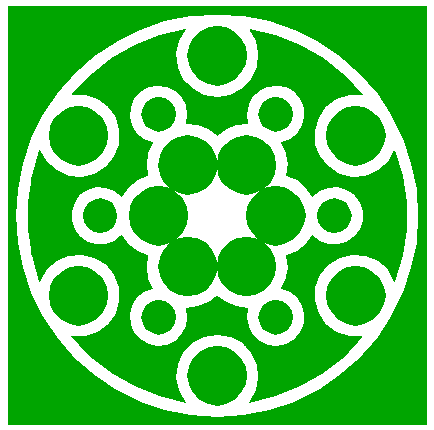

24. | ![]() | Colour all areas corresponding to standing... |
25. | ![]() | ...or to flattened crop, and finish the reconstruction of the 2017 Woolstone Hill formation. |

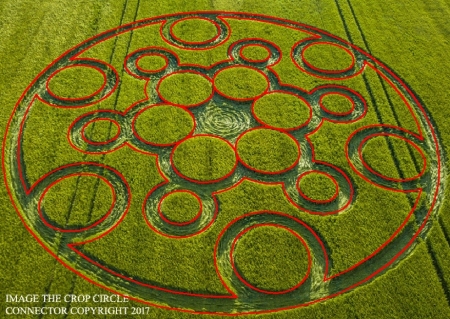

26. | ![]() ![]() | The final result, matched with two aerial images. |
