Reconstruction of the 2017 The Rollright Stones formation | ||

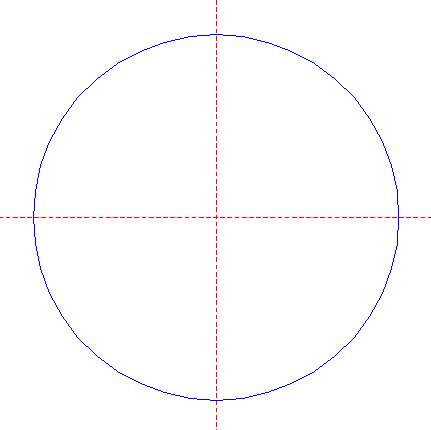

1. | Draw a circle. Draw and extend the horizontal and vertical centerlines. | |
2. | Construct the inscribed octagon (regular 8-sided polygon) of circle 1, pointing up. | |

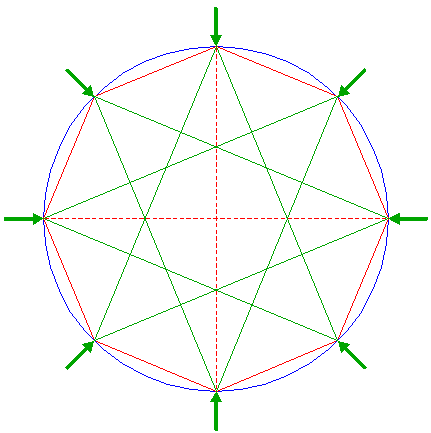

3. | Draw the eight diagonals of octagon 2, from each angular point to every third angular point, as shown. | |

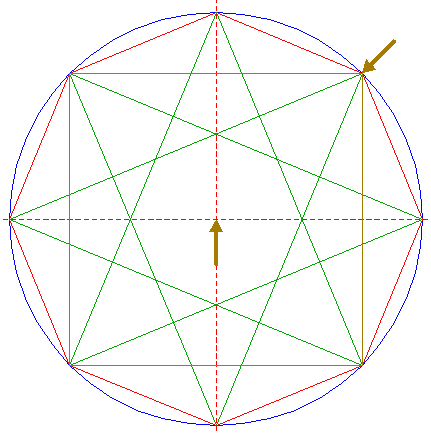

4. | Construct the inscribed square of circle 1, with horizontal and vertical sides. | |

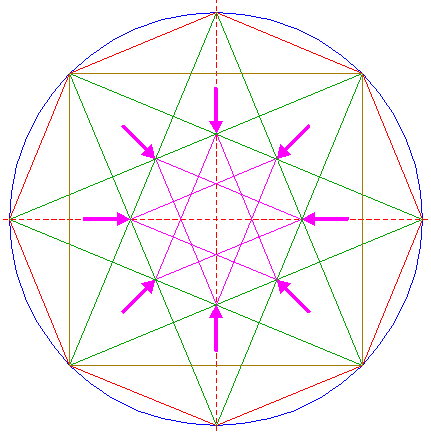

5. | Draw the eight diagonals of the octagon enclosed by diagonals 3, from each angular point to every third angular point, as shown. | |

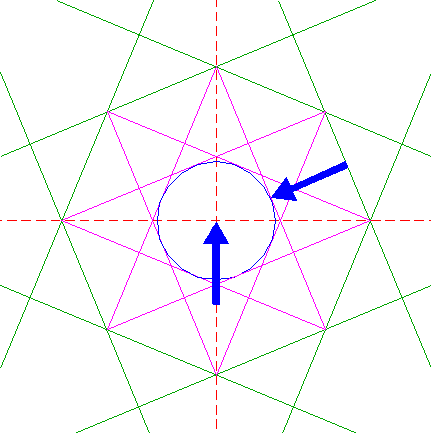

6. | Construct the inscribed circle of (the octagon enclosed by) diagonals 5. | |

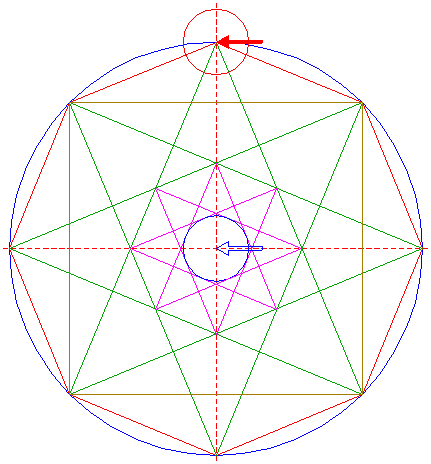

7. | Copy circle 6 to the top of octagon 2. | |

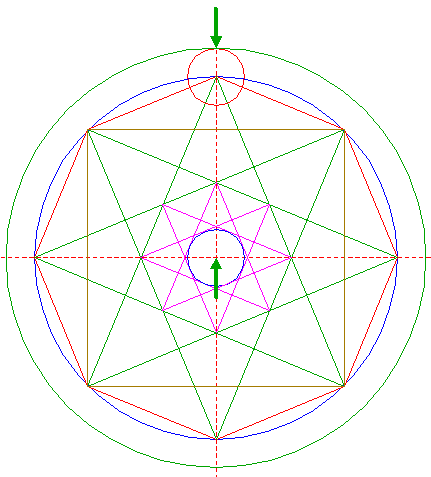

8. | Construct a circle concentric to circle 1, tangent to circle 7 at the upper side. | |

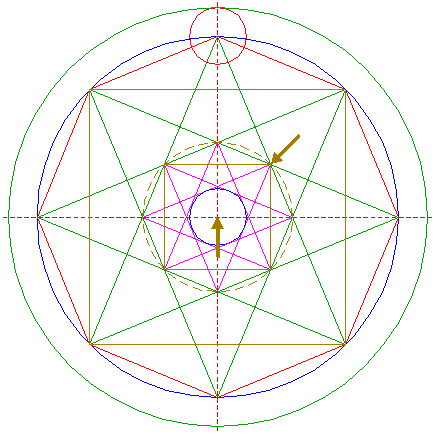

9. | Construct the inscribed square of the circumscribed circle of the octagon enclosed by diagonals 3, with horizontal and vertical sides. | |

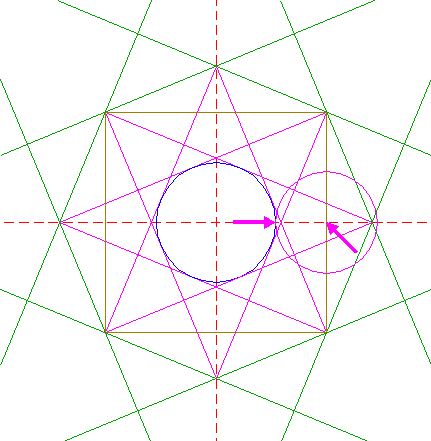

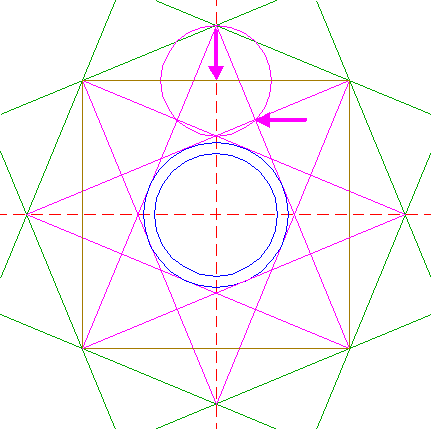

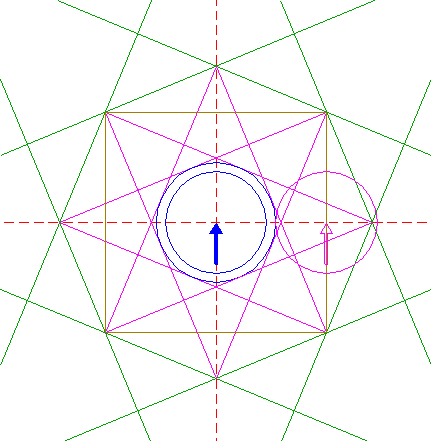

10. | Construct a circle centered at the mid-point of the righthand side of square 9, tangent to circle 6 at the righthand side. | |
11. | Copy circle 10 to the center of circle 1. | |

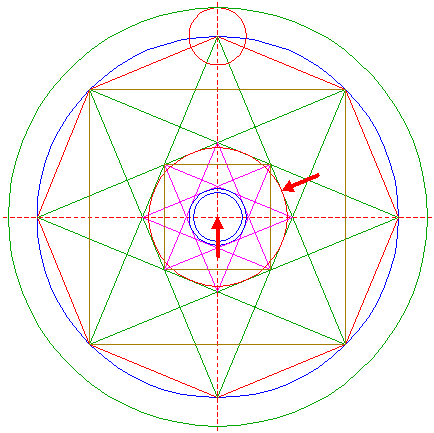

12. | Construct the inscribed circle of the octagon enclosed by diagonals 3. | |
13. | Copy circle 12 to the lower intersection of circle 7 and the vertical centerline. | |

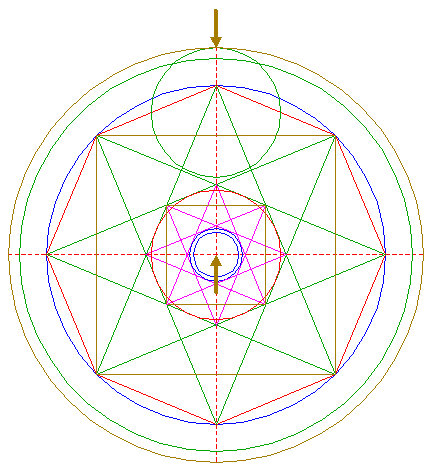

14. | Construct a circle concentric to circle 1, tangent to circle 13 at the upper side. | |

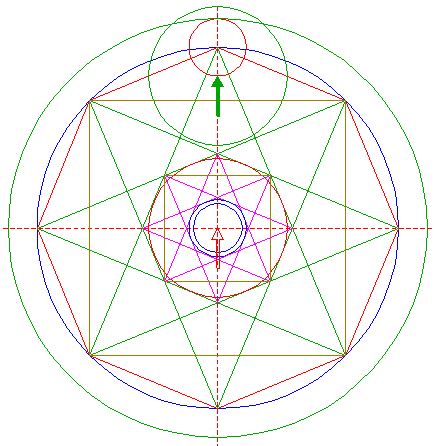

15. | Construct a circle centered at the mid-point of the upper side of square 9, passing through the upper intersections of diagonals 5, as shown. | |

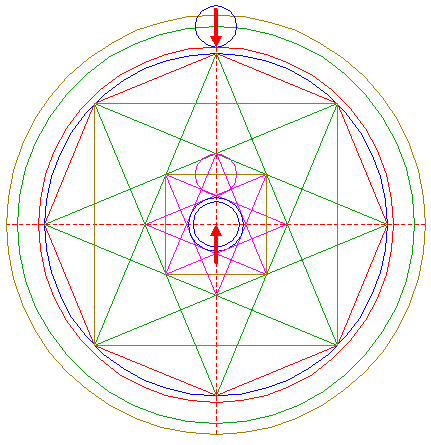

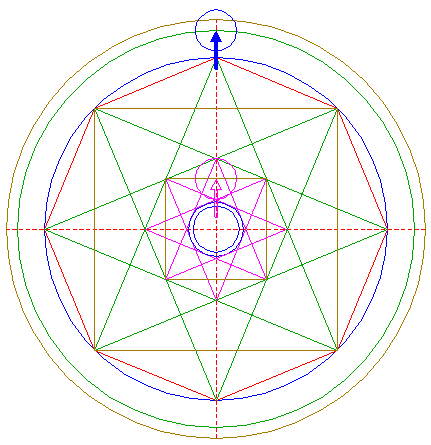

16. | Copy circle 15 to the upper intersection of circle 8 and the vertical centerline. | |
17. | Construct a circle concentric to circle 1, tangent to circle 16 at the lower side. | |

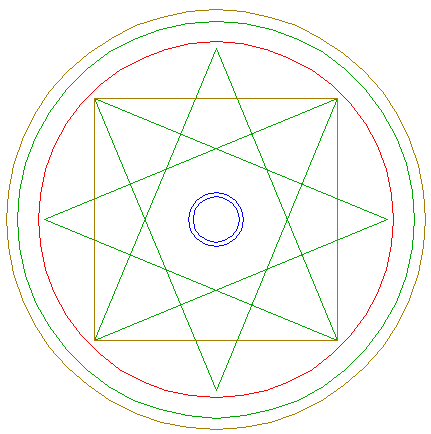

18. | Circles 6, 8, 11, 14, and 17, diagonals 3, and square 4, together, make up the final reconstruction. | |

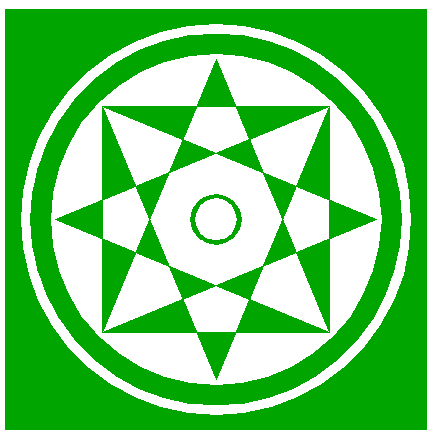

19. | Colour all areas corresponding to standing... | |
20. | ...or to flattened crop, and finish the reconstruction of the 2017 The Rollright Stones formation. | |

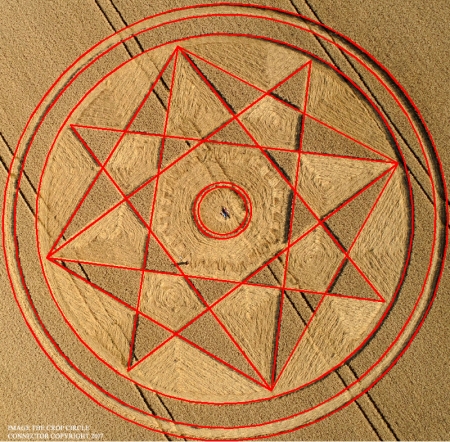

21. | The final result, matched with the aerial image. |
