Reconstruction of the 2017 Oxleaze Copse formation | ||

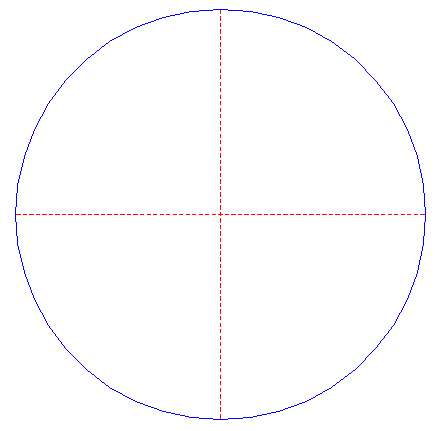

1. | Draw a circle. Draw the horizontal and vertical centerlines. | |

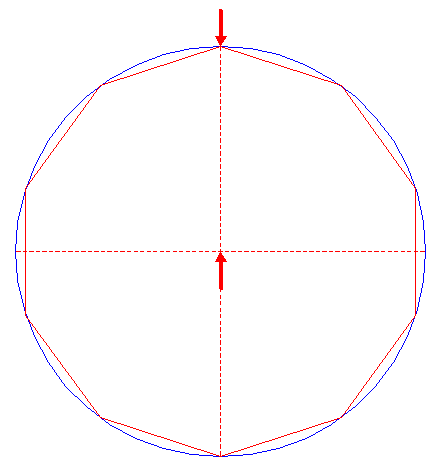

2. | Construct the inscribed decagon (regular 10-sided polygon) of circle 1, pointing up. | |
3. | Construct the inscribed circle of decagon 2. | |

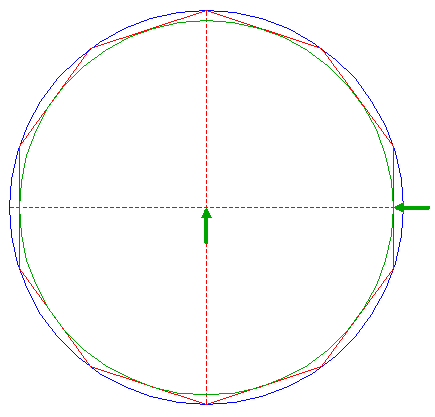

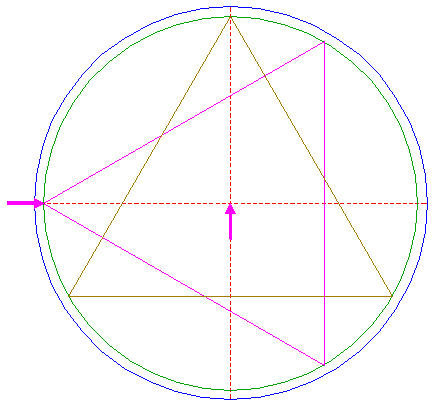

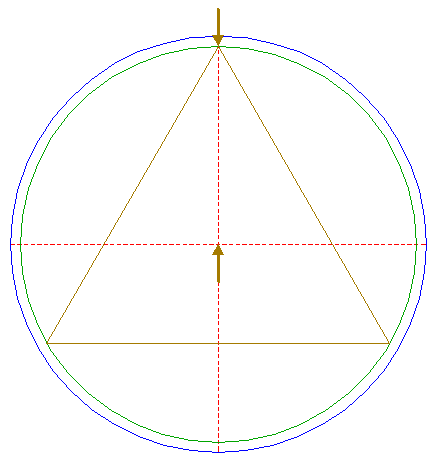

4. | Construct the inscribed equilateral triangle of circle 3, pointing up. | |

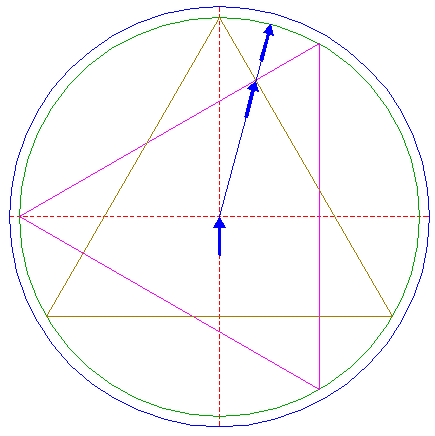

5. | Construct the inscribed equilateral triangle of circle 3, pointing to the left. | |
6. | Draw a line from the center of circle 1 to the upper intersection of triangles 4 and 5. Extend this line upto circle 3. | |

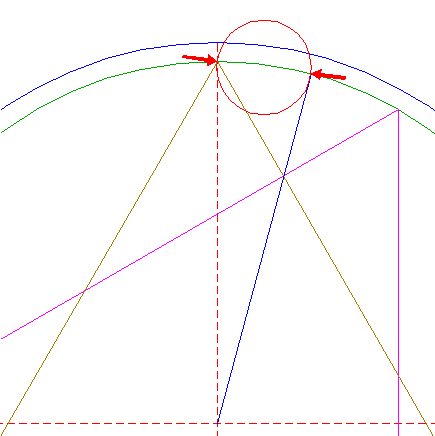

7. | Construct a "two-points" circle (defined by the two end-points of a centerline) between the top of triangle 4 and the intersection of circle 3 and line 6. | |
8. | Draw a line between the centers of circles 1 and 7. Extend this line upto circle 3. | |

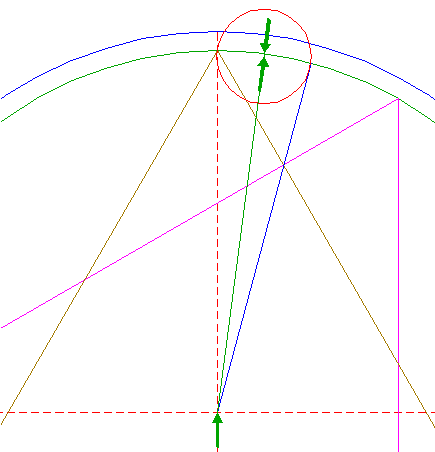

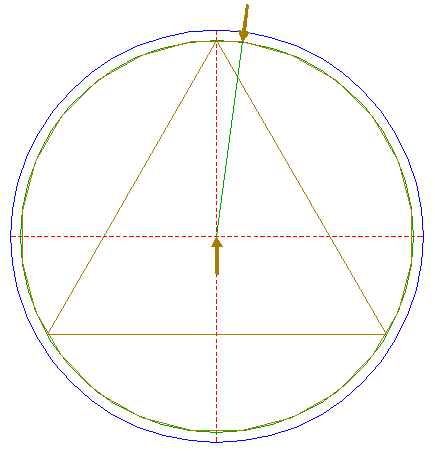

9. | Construct the inscribed regular 24-sided polygon of circle 3, with one angular point coincident with the intersection of line 8 and circle 3. | |

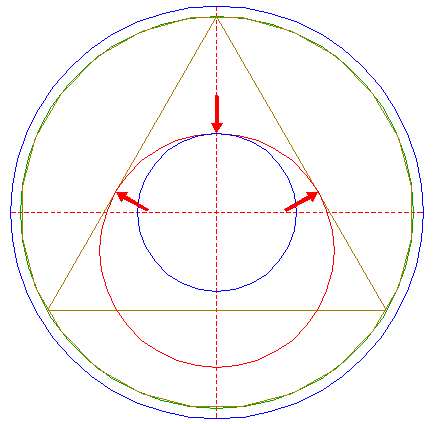

10. | Construct a circle centered at the upper intersection of circle 1 and the vertical centerline, passing through the second angular point of polygon 9, to the right from the top of triangle 4, as shown. | |

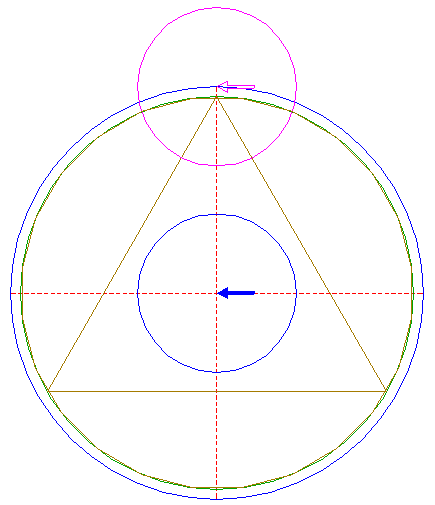

11. | Copy circle 10 to the center of circle 1. | |
12. | Construct the larger circle, passing through the upper intersection of circle 11 and the vertical centerline, tangent to the lefthand and to the righthand sides of triangle 4, as shown. | |

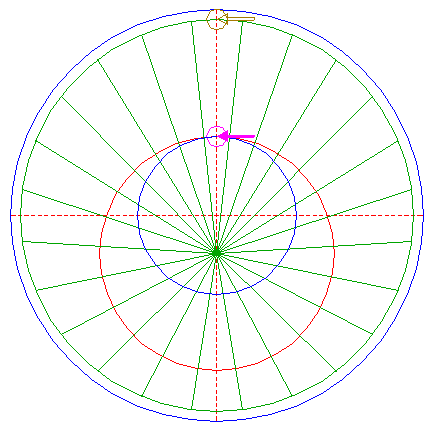

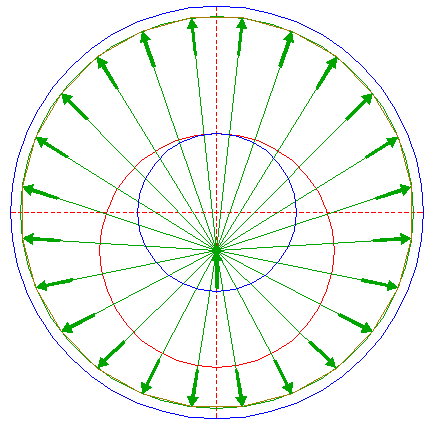

13. | Draw twenty-four rays, from the center of circle 12 to the angular points of polygon 9. | |

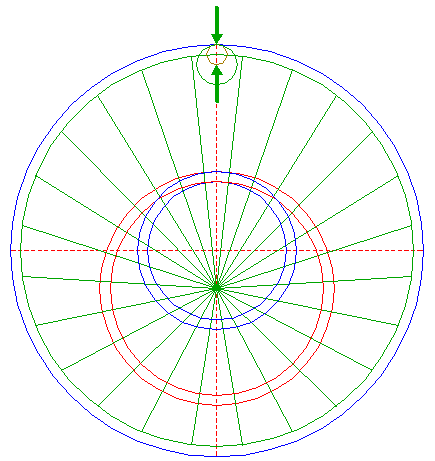

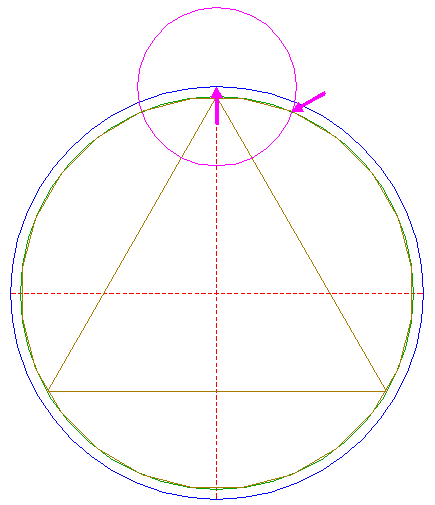

14. | Construct a circle centered at the upper intersection of circle 3 and the vertical centerline, tangent to circle 1 at the upper side. | |

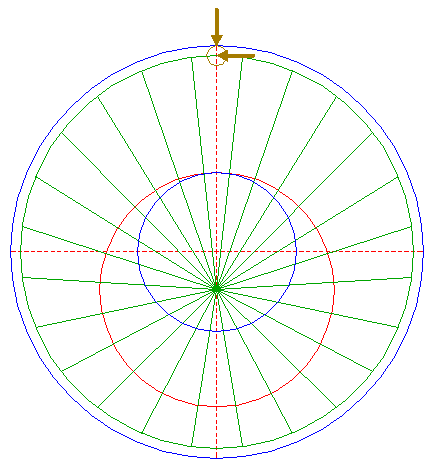

15. | Copy circle 14 to the upper intersection of circle 11 and the vertical centerline. | |
16. | Construct a circle concentric to circle 11, tangent to circle 15 at the lower side. | |

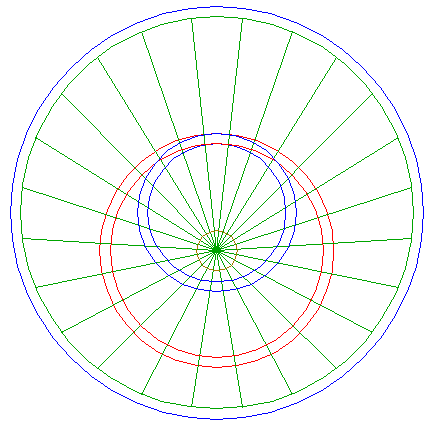

17. | Construct a circle concentric to circle 12, tangent to circle 15 at the lower side. | |

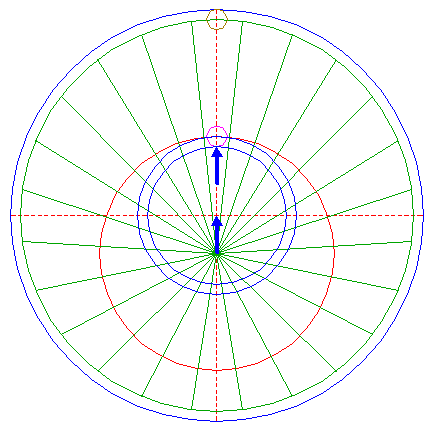

18. | Construct a circle centered at the lower intersection of circle 14 and the vertical centerline, tangent to its upper side. | |

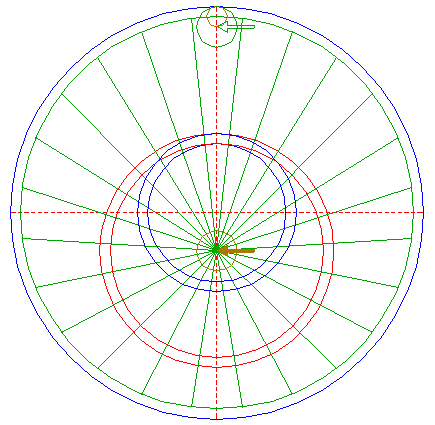

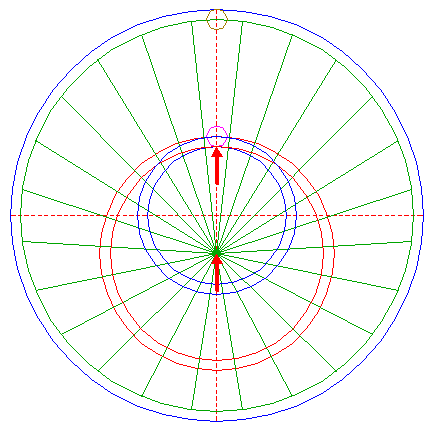

19. | Copy circle 18 to the center of circle 12. | |
20. | Circles 1, 3, 11, 12 16, 17, and 19, and lines 13, are used for the final reconstruction. | |
21. | Remove all parts not visible within the formation itself. | |
22. | Colour all areas corresponding to standing... | |

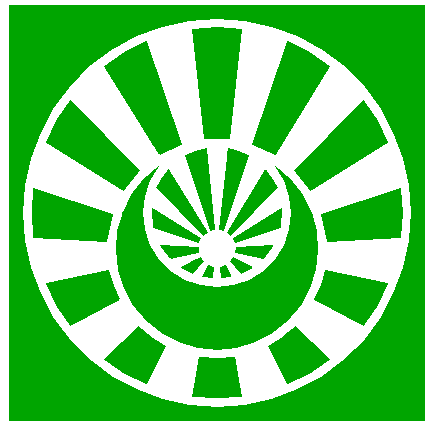

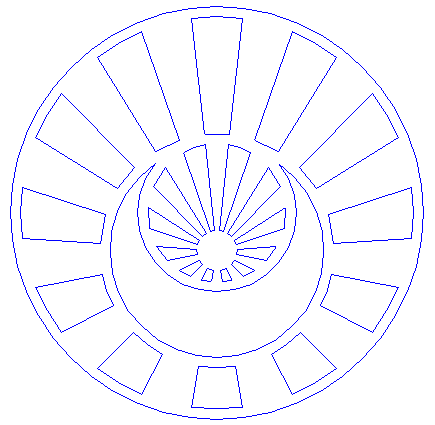

23. | ...or to flattened crop, and finish the reconstruction of the 2017 Oxleaze Copse formation. | |
24. | The final result, matched with the aerial image. |
