Reconstruction of the
2014 Black Wood formation |
|
1. |

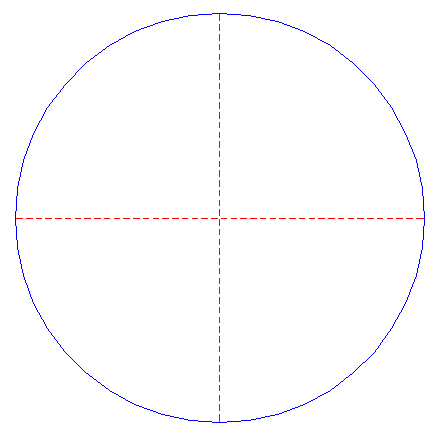

| Draw a circle. Draw the horizontal and vertical centerlines.
|
|
2. |

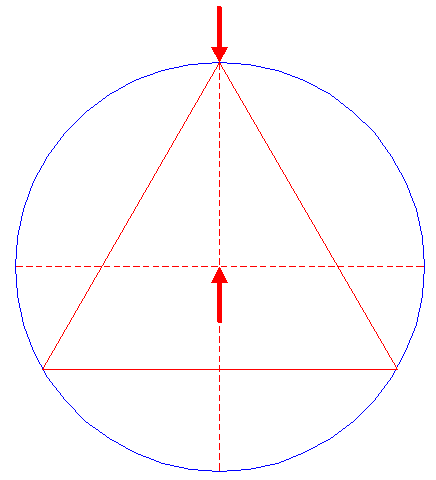

| Construct the inscribed equilateral triangle of circle 1, pointing up.
|
|
3. |

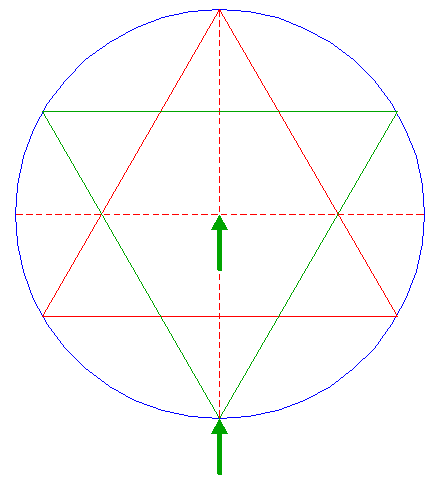

| Construct the inscribed equilateral triangle of circle 1, pointing down.
|
|
4. |

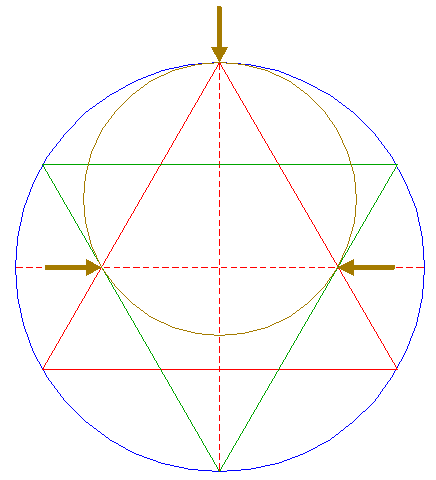

| Construct a circle, passing through the top of triangle 2, and passing through the lefthand and righthand intersections of triangles 2 and 3.
|
|
5. |

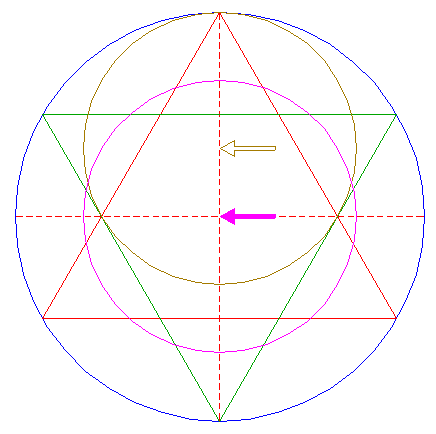

| Copy circle 4 to the center of circle 1.
|
|
6. |

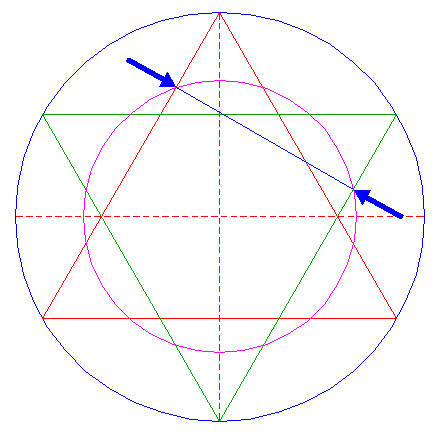

| Draw the connecting line between the upper intersections of circle 5 with the lefthand side of triangle 2 and the righthand side of triangle 3.
|
|
7. |
| Construct a circle concentric to circle 1, tangent to line 6.
|
|
8. |

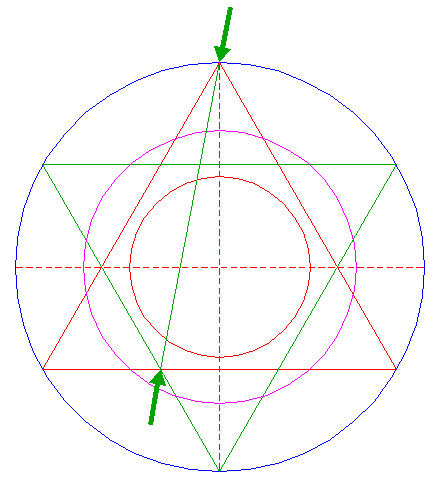

| Draw the connecting line between the top of triangle 2 and the intersection of its lower side with the lefthand side of triangle 3.
|
|
9. |

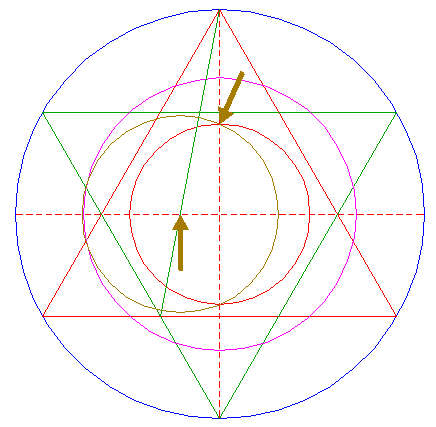

| Construct a circle centered at the intersection of line 8 and the horizontal centerline, passing through the upper intersection of circle 7 and the vertical centerline.
|
|
10. |

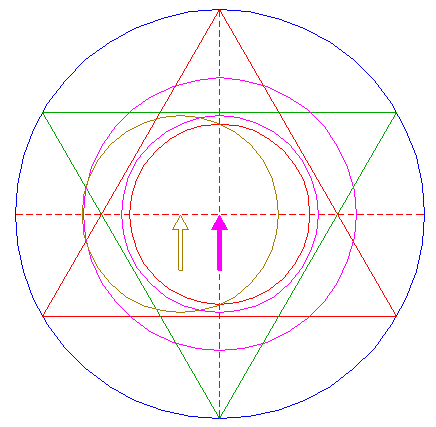

| Copy circle 9 to the center of circle 1.
|
|
11. |
| Construct two circumscribed equilateral triangles of circle 10, one pointing to the left, one to the right.
|
|
12. |

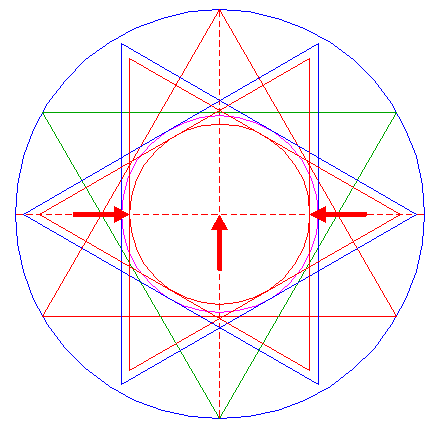

| Construct two circumscribed equilateral triangles of circle 7, one pointing to the left, one to the right.
|
|
13. |

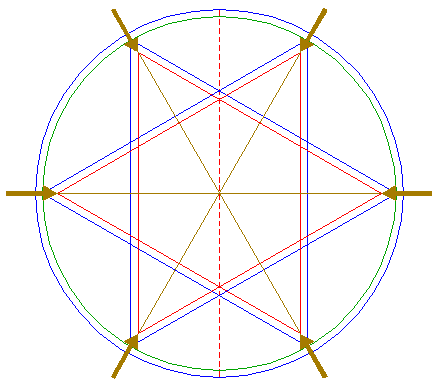

| Construct a circle concentric to circle 1, passing through the angular points of triangles 11.
|
|
14. |
| Draw the three diagonals of the hexagram (regular six-pointed star) made up by triangles 12, as shown.
|
|
15. |

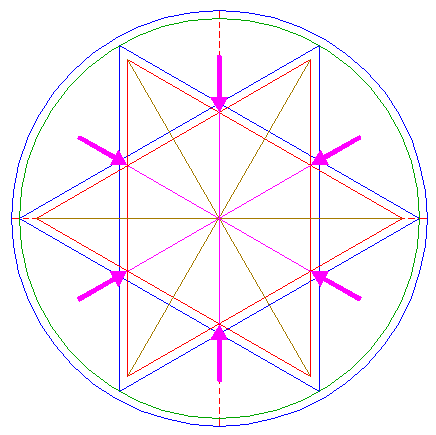

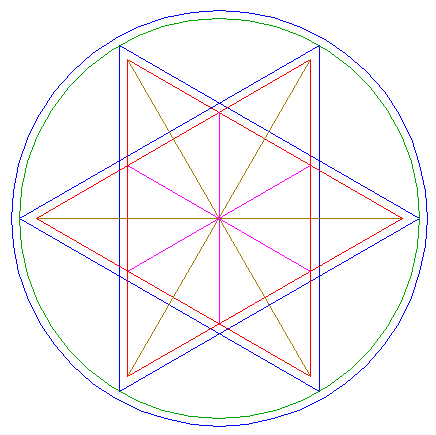

| Draw the three diagonals of the hexagon (regular six-sided polygon) enclosed by triangles 12, as shown.
|
|
16. |
| Circles 1 and 13, triangles 11 and 12, and diagonals 14 and 15, are used for the final reconstruction.
|
|
17. |

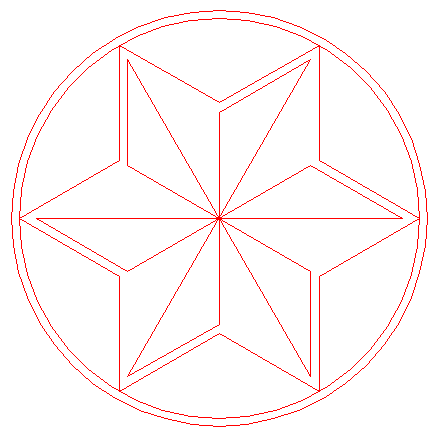

| Remove all parts not visible within the formation itself.
|
|
18. |
| Colour all areas corresponding to standing...
|
|
19. |
| ...or to flattened crop, and finish the reconstruction of the 2014 Black Wood formation.
|
|
20. |

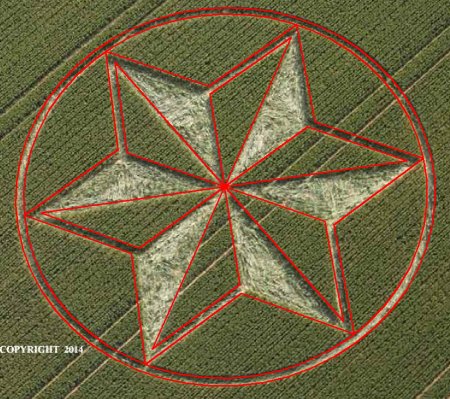

| The final result, matched with the aerial image.
|
